Customized Hydraulic Scissor Lift Working Platform with Removable Segments

Detail Information

Product Description

Detail Information

Model NO.:

M4-030230-D2/2H

Carrying Capacity:

Special Weight Level

Moves:

Stationary

Driven Type:

Hydraulic

Running Mode:

Stationary

Certification:

CE, ISO 9001

Product Name:

Customized Hydraulic Scissor Lift Working Platform

Capacity:

3000kg

Lift Stroke:

2300mm

Close Height:

1200mm

Transport Package:

Wooden Pallet

Trademark:

Marco

Origin:

Ningbo

HS Code:

8428909090

Production Capacity:

1200pieces/Year

Product Description

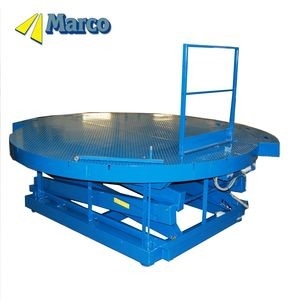

Customized Hydraulic Scissor Lift Working platform With Removable Segments

Product Description

Customized Hydraulic Scissor Lift Working platform With Removable Segments

Mechanical data
Capacity	3000kg
Platform size	Dia3100 or Dia3600mm
Lift stroke	2300mm
Lifting time	41s
Closed height	1200mm
Weight	2660kg

Other Description
This table will be used to brick up a furnace. It's operated by a built-in foot control.
The table can be levelled with an adjustable foot in each corner of the frame and by removing segments on the outside of table, the diameter can be changed.

Customized Hydraulic Scissor Lift Working Platform with Removable Segments 0

Customized Hydraulic Scissor Lift Working Platform with Removable Segments 1

Customized Hydraulic Scissor Lift Working Platform with Removable Segments 2

Customized Hydraulic Scissor Lift Working Platform with Removable Segments 3

Customized Hydraulic Scissor Lift Working Platform with Removable Segments 4

Marco is the expert in safe and reliable vertical positioning, with over 80 years' experience in designing and manufacturing rugged, high-performance lift tables. As a company focusing on quality and technology, Marco lift tables have been successfully applied to warehousing, logistics, automotive manufacturing, air cargo transportation, chemical, food, beverage and other industries.

Our advanced customized lift tables are designed and constructed for high performance and reliability. Health and safety are most critical for the business development in all industries. The durability of our lift tables to give you years of safe, trouble-free operation; The flexibility of our solutions and services that allow you to focus on your core business; The spirit of innovation that constantly drives us forward. Our whole range is designed to keep your operations running smoothly and your people productive and safe.

Our head office and production facilities are located in Ä Ngelholm, Sweden. In 2009, Marco China founded in Ningbo City Zhejiang P. R. And is focus on Asia Pacific market with conforming design and quality lift table. Our plant VPG Wuxi lift Co., Ltd. is close to Shanghai sea port while our engineering center is located Shanghai Min Hang District close to Hong Qiao Train station and airport. We have sales branch with professional sales teams in Ningbo City.

With more than 10 years professional production experiences on lift tables, we have ISO9001, CE, EN15085 and ISO3834 certificates in our Wuxi plant.

Here advantages of Marco Lift table as below:

Global Design Team following European standard EN1570 standard with Marco Sweden

Global sourcing for critical components from European well-known brands

Quick customized solution for various application requirements

Professional local engineering teams to support on Pre-sales and after-sales.

Local manufacturing in China with short lead time and competitive price level

ISO9001, CE, EN15085, ISO3834 Certificates

Safety, reliability and flexibility for Marco lift table

Close to biggest seaport Shanghai and convenient transportation for shipment

Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.

Pump	Bucher	Motor	Hoyer Denmark, protection IP55
Control Panel	Marco standard control box	Sealing	Sweden, SKF
Cylinder	Marco, with rapture valve and damping	Limit switch	USA, Suns
Safety frame	Aluminum with limit switch	Scissor arm	Q345B, profile steel
Paint	Finland, Tikkurila	Hydraulic hose	USA, Eaton

Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.

Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks (public holiday excluded)
