Tilt Table
Created with Pixso. Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table

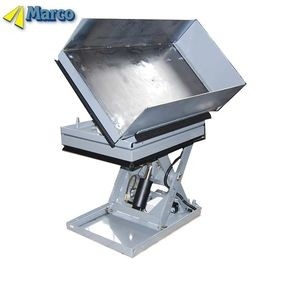

Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table
  • Name

Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table

Detail Information
Product Description
Detail Information
Model NO.:
M0-002050-D1+ MT 002045-D1
Carrying Capacity:
Special Weight Level
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Certification:
CE, ISO 9001
Product Name:
Marco Ergonomic Hydraulic Tilt Scissor Goods Lift
Capacity:
200kg
Lift Stroke:
500mm
Close Height:
360mm
Transport Package:
Wooden Pallet
Trademark:
Marco
Origin:
Ningbo
HS Code:
8428909090
Production Capacity:
1200pieces/Year
Product Description
Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table

Product Description
Marco Ergonomic Hydraulic Tilt Scissor Goods Lift Table
Mechanical data
Capacity200 Kg
Lift stroke500 mm
Lifting time8 s
Closed height360 mm
Weight310 Kg
Other
Ergonomic compact lift table fitted with a tilt unit (45°) for optimal operator working height and is used in an assembly line.
Roll off protection around the table is fixed at both long sides and removable at the short sides.
The table and the tilt runs with a double hand control panel for high security.



Marco Standard Components

All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.


PumpBucherMotorHoyer Denmark, protection IP55
Control Panel  Marco standard control boxSealing Sweden, SKF
CylinderMarco, with rapture valve and dampingLimit switchUSA, Suns
Safety frameAluminum with limit switchScissor armQ345B, profile steel
PaintFinland, TikkurilaHydraulic hoseUSA, Eaton




Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.


Packaging & Shipping:
Main Loading Port: ShangHai or Ningbo
Production Delivery: 6-8 weeks  (public holiday excluded)
